Description

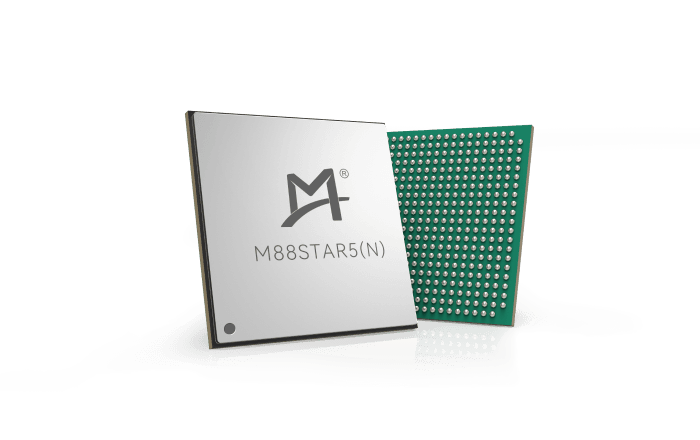

Montage introduces the latest addition to its Jintide® Platform product family: the M88STAR5(N) Security & Trust Computing Accelerator. Leveraging Montage's innovative Mont-TSSE® (Trust & Security System Extension) technology, M88STAR5(N) integrates two essential functions — hardware-level data encryption/decryption and platform trust computing measurement — onto a single chip. Designed to meet the demanding requirements of modern cybersecurity, the chip supports both Chinese commercial crypto algorithms and globally recognized standard crypto algorithms. Featuring multiple TRNGs on-chip, it delivers a total processing throughput of up to 160Gbps through PCIe® 5.0 interfaces, ensuring robust security and high-speed performance across diverse applications.
Thanks to its small footprint, M88STAR5(N) can be directly mounted onto server motherboards or deployed in multi-chip configurations via AIC cards, effectively doubling crypto processing capabilities. The chip also supports trust computing standards such as TPM, TCM and TPCM, serving as a robust hardware root of trust (HRoT) in compliance with Trusted Platform 3.0 specifications. Montage provides comprehensive support, including relative SDK and evaluation boards, offering customers a cost-effective, all-in-one solution for implementing trust computing measurement and crypto acceleration functions across their existing system platforms.
Please click the above image to learn more about Mont-TSSE®
Features
- Hardware acceleration for mainstream Chinese and international crypto algorithms
- High-performance SM2/3/4 crypto processing rivaling specialized cards
- Integrated HSM/RoT for enhanced security applications
- Multi-engine security accelerator with a total throughput up to 160Gbps
- Embedded trust computing with TPM/TCM/TPCM support
- PCIe 5.0 x8 interface with SR-IOV and S-IOV virtualization
- Diverse peripheral interfaces including SMBus, I3C, UART, SPI, and GPIO
- Advanced power management for efficient operation
- Compact design for easy system integration
- Green package: 437-pin Lidded FCCSP
Supported Algorithms
| Algorithm | Mode |
|---|---|
| AES/SM4 | ECB/CBC/CFB/GCM/XTS/OFB/CTR/GMAC |
| RSA | 1024/2048/3072/4096 |
| SM2 | Sign/Verify/Enc/Dec/kG/kP |
| SM3 | Hash & HMAC |
| SHA | 256/384/512 Hash & HMAC |
| ECC | SECP256R1/SECP256K1/SECP384R1 |
| TRNG | Multiple TRNGs, compliant with Shangmi security chip requirements |
SDK
- Mont-TSSE® Firmware SDK: Security Firmware SDK (Zephyr Based)
- Mont-TSSE® Driver: Linux Hardware Driver
- Mont-TSSE® DPDK Package: DPDK Driver Interface
- Mont-TSSE® Crypto Library: High-performance Crypto Library
- Mont-TSSE® SSL Provider: OpenSSL Engine Interface
- Mont-TSSE® SDF: SDF Interface
Typical Application Scenarios
Product List
| Part No. | Product Name | Operating Temperature | Package |
|---|---|---|---|
| M88STAR5 | Security & Trust Computing Accelerator | -40 ~ 105℃ | 14 mm x 14 mm, 437-pin Lidded FCCSP |
| M88STAR5N | Security & Trust Computing Accelerator (with 16MB Embedded Flash) |
