DDR4 LRDIMM
M88DDR4DB02 (Gen2 DDR4 DB)

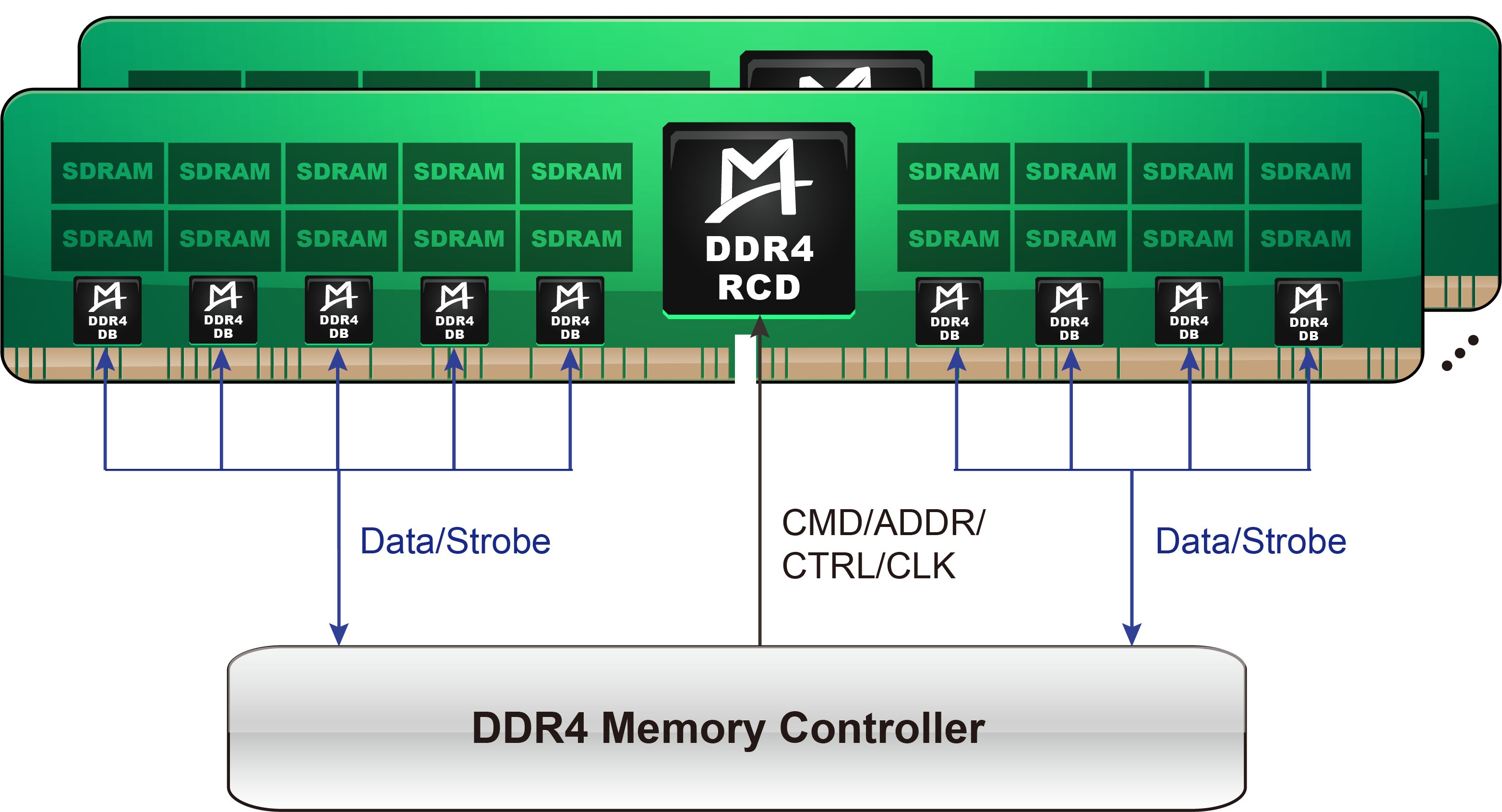

M88DDR4DB02 is a dual 4-bit bidirectional Gen2 DDR4 Data Buffer (DB) with differential strobes. The DB is compliant with JEDEC DDR4DB02 specification and supports data rates up to DDR4-2666. Nine DBs can be used in conjunction with one DDR4 RCD as a chipset for LRDIMM to enable advanced memory solutions with higher capacity, higher speed, and lower power consumption for demanding server platforms.
Features
-
Compliant with JEDEC DDR4DB02 standard -
Speed up to DDR4-2666
-
Bidirectional retiming and 1:1 redriving of DDR4 data (DQ) signals
-
Regeneration of data strobe (DQS) signals from input clock
-
FIFOs on the DQ path for decoupling Host and DRAM interface time domains
-
Up to four package ranks supported
-
Package rank timing alignment supported on the Host interface
-
x4 DRAM devices supported
-
1.2 V VDD voltage
-
Parity error checking and sequence error checking on the BCOM interface
-
Different power saving modes such as CKE low power mode and CK stop mode
-
Green package: Fine-pitch Ball Grid Array (FBGA)
Applications
DDR4 LRDIMM
For product details, please contact us.
