DDR4 LRDIMM
M88DR4DB02P/M88NR4DB02P (Gen2 Plus DDR4 DB)
M88DR4DB02P/M88NR4DB02P is a Gen2 Plus DDR4 Data Buffer (DB), which is compliant with the JEDEC DDR4DB02 specification and supports data rates up to DDR4-3200. The DBs can be used in conjunction with Montage’s Gen2 Plus DDR4 RCD (M88DR4RCD02P) for LRDIMM and NVDIMM (Non-Volatile Dual In-line Memory Module) applications, that is, 1 * RCD + 9 * M88DR4DB02P used for one LRDIMM, or 1 * RCD + 9 * M88NR4DB02P used for one NVDIMM.

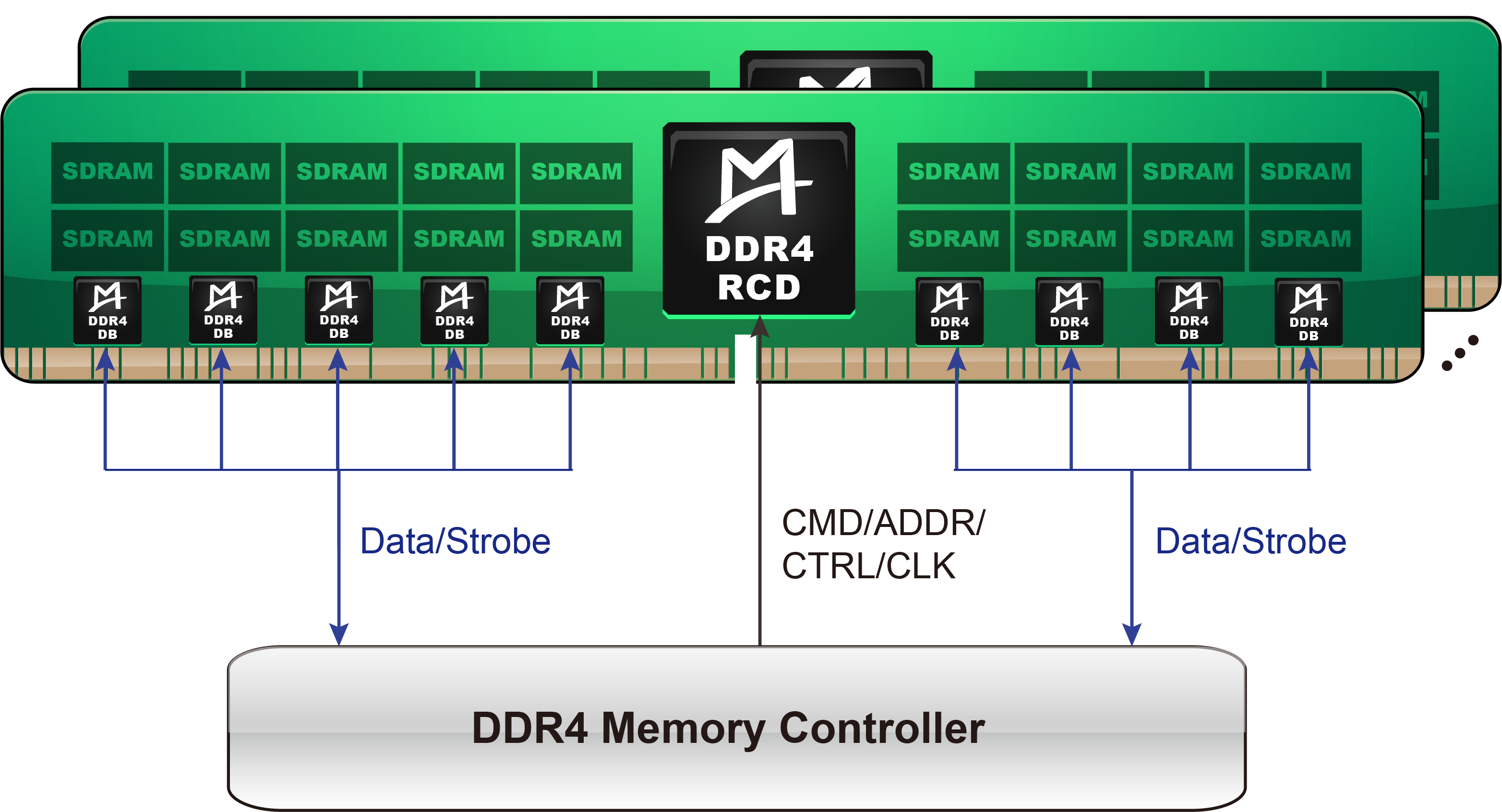

The left image shows the application of DB on the DDR4 LRDIMM as an example.
Features
-
Compliant with JEDEC DDR4DB02 standard -
Speed up to DDR4-3200
-
Optional NVDIMM support feature (only for M88NR4DB02P)
-
Bidirectional retiming and 1:1 redriving of DDR4 data (DQ) signals
-
Regeneration of data strobe (DQS) signals from input clock
-
FIFOs on the DQ path for decoupling Host and DRAM interface time domains
-
Up to four package ranks supported
-
Package rank timing alignment supported on the Host interface
-
x4 DRAM devices supported
-
1.2 V VDD voltage
-
Parity error checking and sequence error checking on the BCOM interface
-
Different power saving modes such as CKE low power mode and CK stop mode
-
Green package: Fine-pitch Ball Grid Array (FBGA)
Applications
M88DR4DB02P for DDR4 LRDIMM
M88NR4DB02P for DDR4 NVDIMM
For product details, please contact us.
