M88DR4RCD02P (Gen2 Plus DDR4 RCD)
M88DR4RCD02P is a Gen2 Plus DDR4 Registering Clock Driver (RCD) for RDIMM and LRDIMM applications, which is compliant with JEDEC DDR4RCD02 specification and supports data rates up to DDR4-3200. M88DR4RCD02P has an optional NVDIMM (Non-Volatile Dual In-line Memory Module) mode, which adds a new level of functionality to memory systems by allowing servers to fully utilize the data persistence of non-volatile memory (NVM) as well as the high-speed access of DRAMs. This enables NVMs to be accessed at DRAM rate levels.

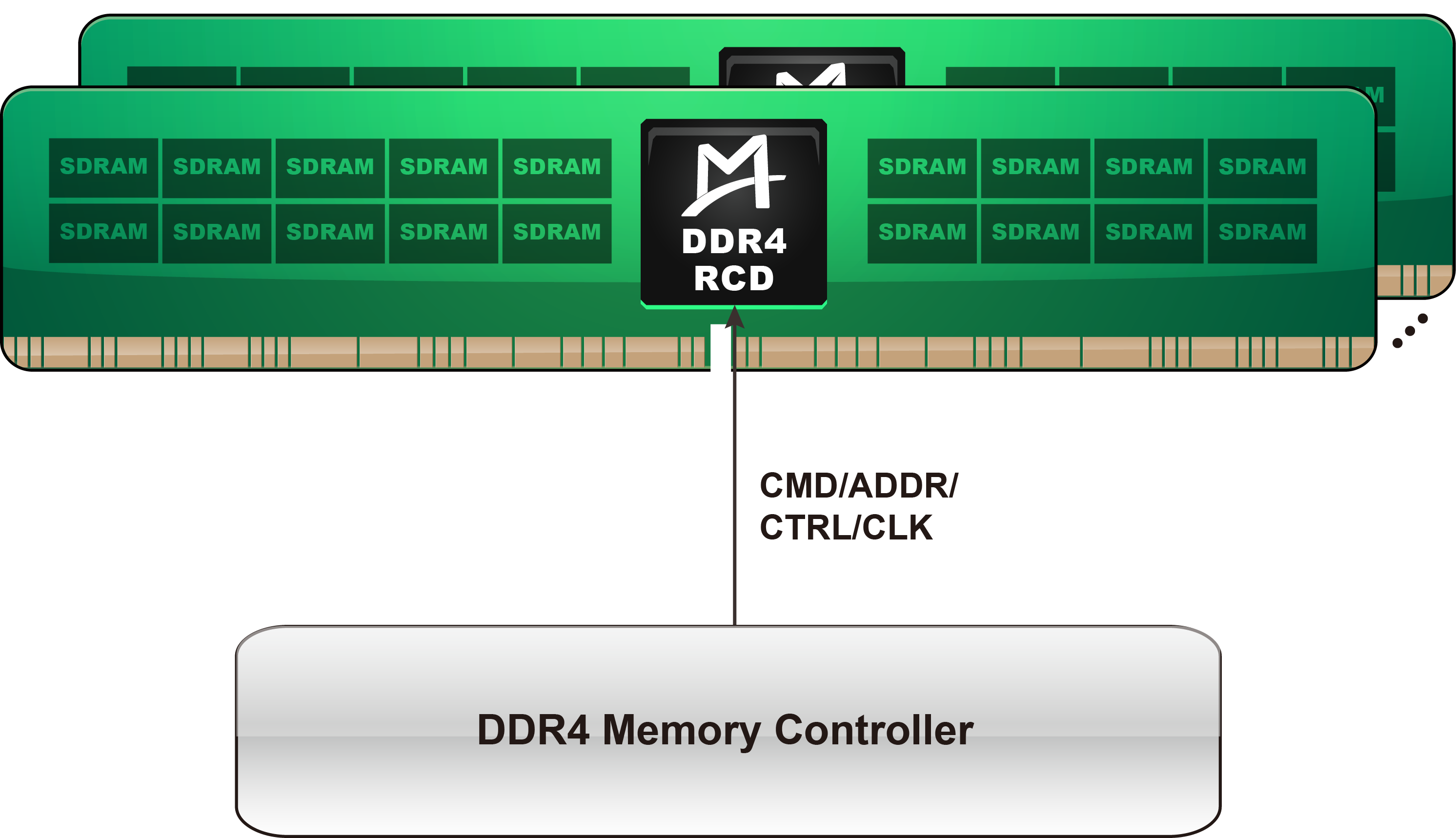

The left image shows the application of RCD on the DDR4 RDIMM as an example.
Features
-
Compliant with JEDEC DDR4RCD02 specification -
Speed up to DDR4-3200
-
Optional NVDIMM support feature
-
32-bit 1:2 registering buffer for address and control signals
-
Integrated PLL clock driver distributing one differential clock pair to five differential pairs
-
1.2 V VDD voltage
-
Dual and Quad chip selects support
-
Parity checking on command and address inputs
-
Output characteristics configurable through control registers
-
I²C interface supported
-
Different power saving modes such as S3 low power mode and CK stop mode
-
Low power consumption
-
Green package: Fine-pitch Ball Grid Array (FBGA)
Applications
DDR4 RDIMM, LRDIMM and NVDIMM
For product details, please contact us.
