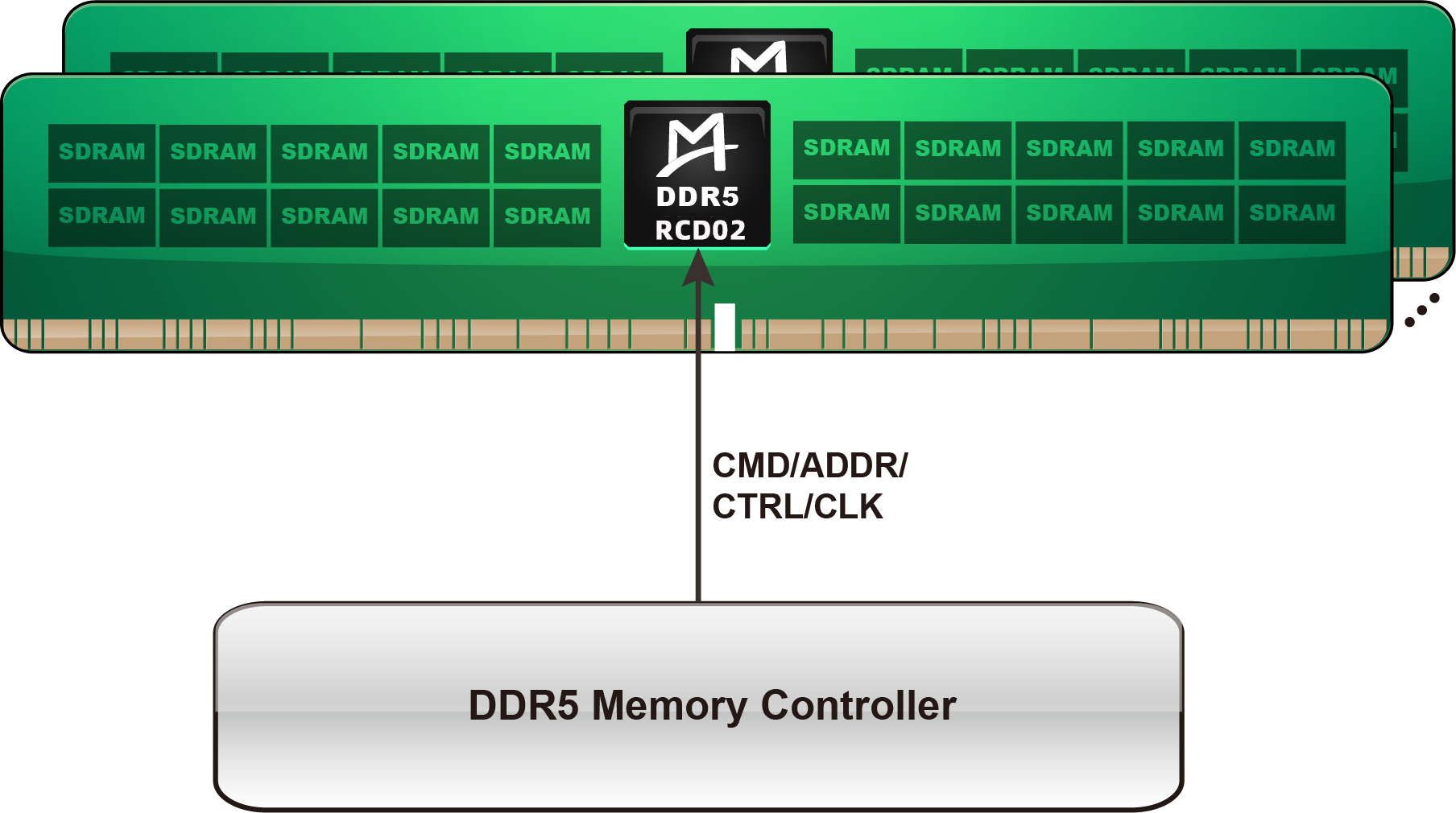

M88DR5RCD02 (Gen2 DDR5 RCD)
M88DR5RCD02 is a Gen2 DDR5 Registering Clock Driver (RCD02) with a maximum data rate of 5600 MT/s. Compliant with the latest JEDEC DDR5RCD02 specification, the RCD02 features a dual-channel memory architecture and supports 1.1V VDD supply. It is designed for use on DDR5 RDIMMs to enable memory systems with higher capacity and lower power consumption for data-intensive applications.
Features
-
Compliant with the latest JEDEC DDR5RCD02 specification -
Speed up to 5600 MT/s
-
1.1V VDD and 1.0V VDDIO voltages
-
Two channel 1:2 registering buffer for address and control signals
-
Integrated PLL clock driver distributing one differential clock pair to five differential pairs per channel
-
Dual chip selects
-
Parity checking across CA and DPAR separately on two sub-channels
-
Output characteristics configurable through control registers
-
CA, CS and DFE training modes supported
-
Sideband bus interface supporting I²C and I3C Basic modes
-
Power saving modes: PDE power down, Self refresh w/wo Clock Stop modes
-
Green package: 240-ball FCBGA
Applications
DDR5 RDIMM
For product details, please contact us.
