DDR5 RDIMM
M88DR5RCD04 (Gen4 DDR5 RCD)

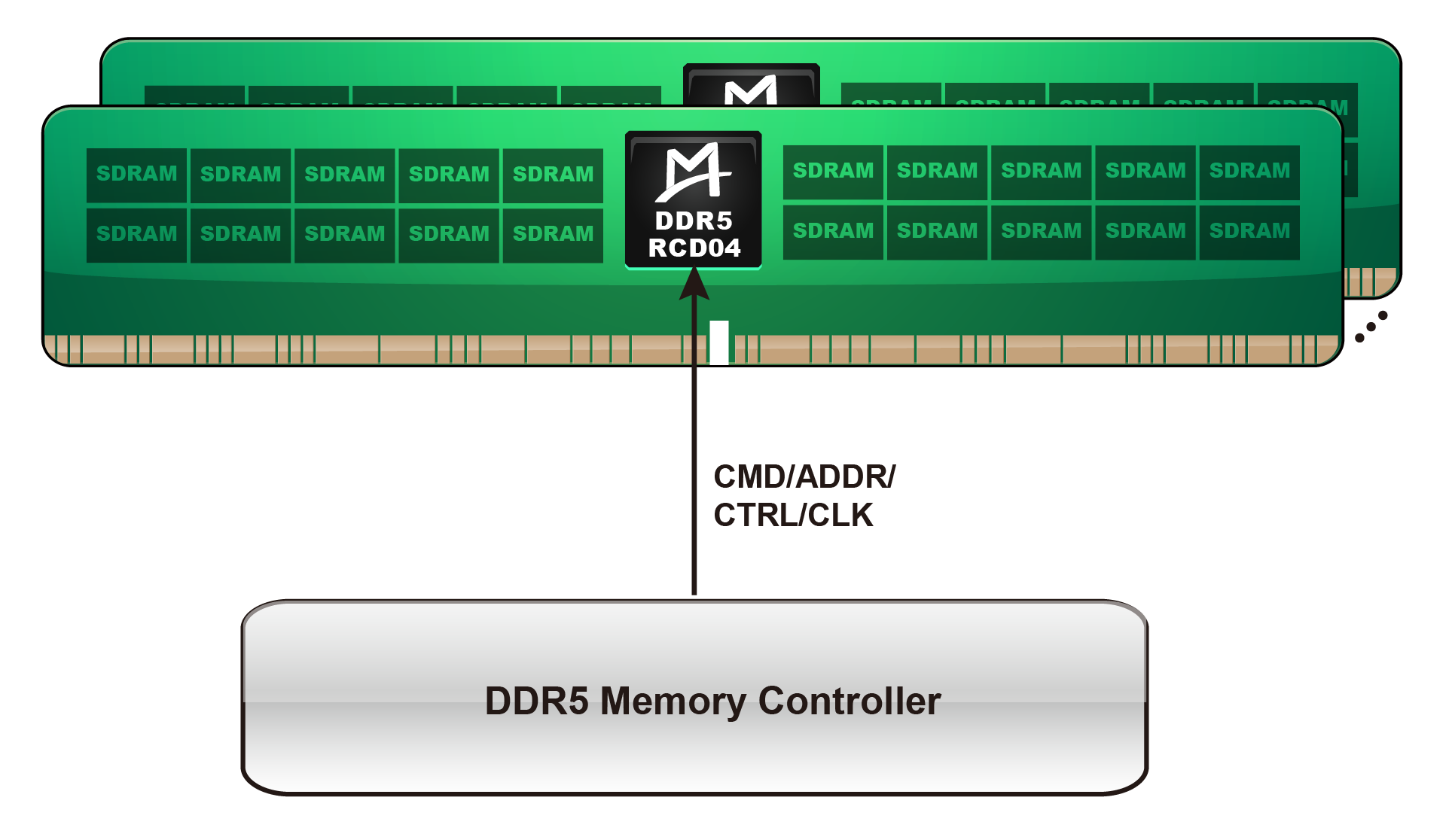

M88DR5RCD04 is a Gen4 DDR5 Registering Clock Driver (RCD04) with a maximum data rate of 7200 MT/s. Compliant with JEDEC DDR5RCD04 specification, the RCD04 features a dual-channel memory architecture and supports 1.1V VDD supply. Designed for use on DDR5 RDIMMs, the chip can help the upcoming server systems address performance bottlenecks and provide critical support for demanding workloads.
Feature
-
Compliant with JEDEC DDR5RCD04 specification -
Speed up to 7200 MT/s
-
1.1V VDD and 1.0V VDDIO voltages
-
Two channel 1:2 registering buffer for address and control signals
-
Integrated PLL clock driver distributing one differential clock pair to four differential pairs per channel
-
Dual chip selects
-
Parity checking across CA and DPAR separately on two sub-channels
-
Output characteristics configurable through control registers
-
CA, CS and DFE training modes supported
-
Sideband bus interface supporting I²C and I3C Basic modes
-
Power saving modes: PDE power down, Self refresh w/wo Clock Stop modes
-
Green package: 240-ball FCBGA
Applications
DDR5 RDIMM
For product details, please contact us.
