DDR5 RDIMM

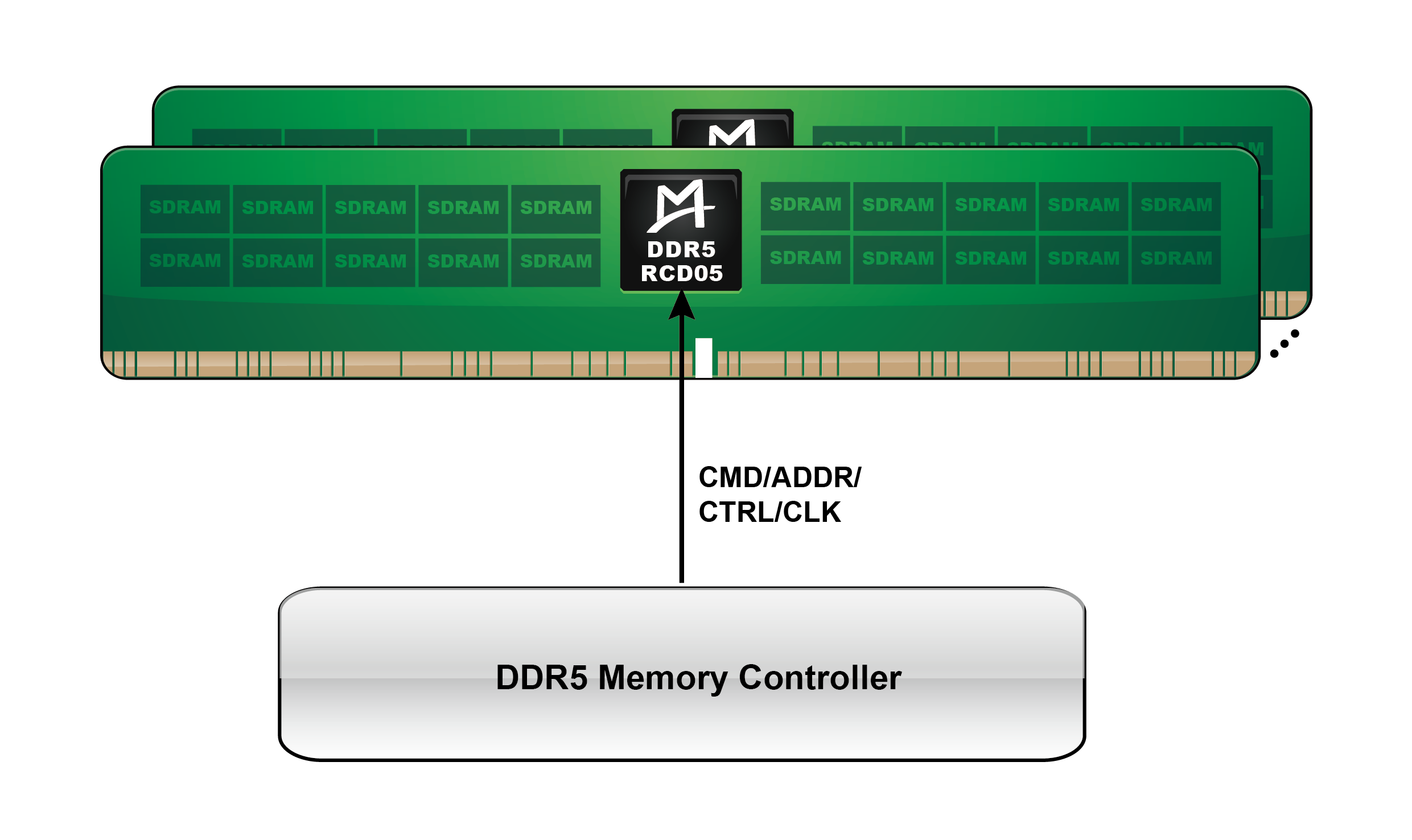

M88DR5RCD05 (Gen5 DDR5 RCD)
M88DR5RCD05 is a Gen5 DDR5 Registering Clock Driver (RCD05) with a maximum data rate of 8000 MT/s. Compliant with JEDEC DDR5RCD05 specification, the RCD05 features a dual-channel memory architecture and supports 1.1 V VDD supply. Designed for use on DDR5 RDIMMs, the chip addresses the growing demand from data centers and AI servers, and other applications for memory systems with higher bandwidth and greater reliability.
Features
-
Compliant with JEDEC DDR5RCD05 specification -
Speed up to 8000 MT/s
-
1.1V VDD and 1.0V VDDIO voltages
-
Two-channel 1:2 registering buffer for CA inputs and control signals
-
Integrated PLL clock driver distributing one differential clock pair to eight differential pairs per channel
-
Dual chip selects
-
Scrambling on DCA
-
Parity checking across CA and DPAR inputs separately on two sub-channels
-
Output characteristics configurable through control registers
-
CA, CS and DFE training modes supported
-
DESTM for DFE and enhanced CTLE training supported
-
Host Interface Training during Self-Refresh Mode (HIT-SR) supported
-
Sideband bus interface supporting I²C FM+ mode and I3C Basic modes
-
Power-saving mode support: Self-Refresh mode w/wo Clock Stop
-
Green package: 264-ball FCBGA
Applications
DDR5 RDIMM
For product details, please contact us.
